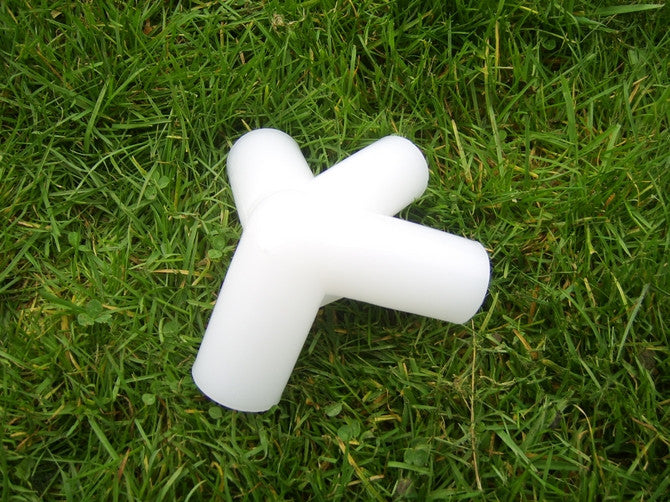

Roof Corner Connector - 4-Way - 20mm- 20mm- 26mm diameters

Item Description:
The Roof Corner Connector is the bracket located at either of the four top corners of the frame on many self-assembly gazebos. It is used to join together three roof poles and the leg pole.
Material: Plastic
Colour: White

---

Dimensions of Roof Corner Connector:
Slotted arms: Yes (see picture one)
Height: 80mm (measured vertically in upright position)
Width: 105mm (measured left to right in pictures 1 and 2)
Depth: 80mm (measured horizontally in upright position)
Centre socket inner diameter: 20mm
Side socket inner diameter: 20mm
Bottom socket inner diameter: 26mm
Side socket angle: 90 degrees right-angle (to fit a square or rectangular gazebo)
Bottom socket angle: 90 degrees right-angle (to fit a straight-leg gazebo)

Compatibility:
B&Q 3m x 3m Self-assembly Gazebo
2010 - 2012: Catalogue no. 0000005291656
The Range 3m x 3m Self-assembly Gazebo
2014: Catalogue no. 528474
May be compatible with other makes, models and sizes

---

Weight:
This item weighs 35g.
To see postage rates please click here.

---

Extra Information:
May also be known as: Corner Bracket, Top Joint, Joining Bracket, 4-pronged Connector

---
