Item Description:
The Roof Corner Connector is the bracket located at either of the four top corners of the frame on many self-assembly gazebos. It is used to join together three roof poles and the leg pole.
Material: Plastic
Colour: White

Dimensions of Roof Corner Connector:
Slotted arms: No
Height: 100mm (measured vertically in upright position)

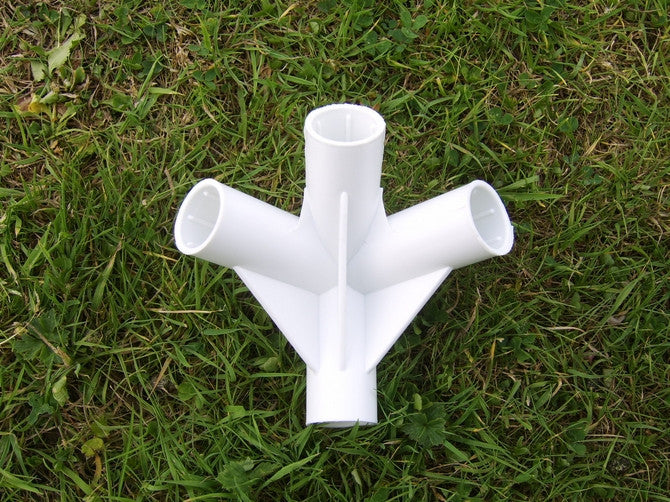

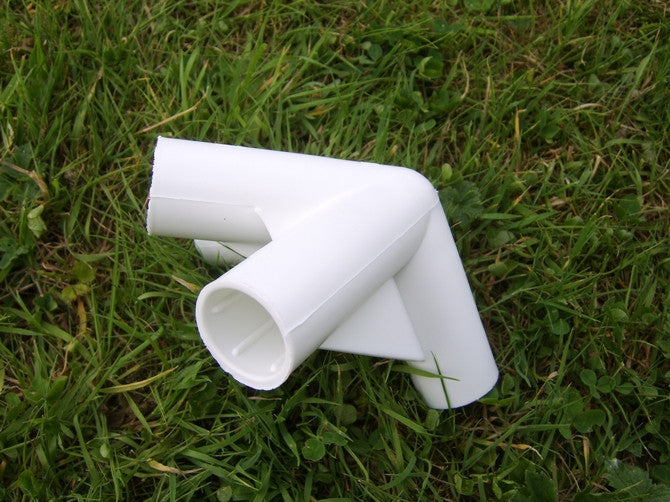

Width: 110mm (measured left-to-right in pictures 2 and 3)
Depth: 70mm (measured horizontally in upright position)
Centre socket inner diameter: 20mm
Side socket inner diameter 20mm
Bottom socket inner diameter 20mm
Side socket angle: 90 degrees right-angle (to fit a square or rectangular gazebo)
Bottom socket angle: Slightly over 90 degrees (to fit a sloped-leg gazebo)

Compatibility:
Argos 2.7m x 2.7m Self-assembly Gazebo
2011 - 2014: Catalogue no. 650/2777
2011 - 2014: Catalogue no. 650/2210
Homebase "Arran" 2.7m x 2.7m Self-assembly Gazebo
2010 - 2014: Catalogue no. 098655
May be compatible with other makes, models and sizes

Weight:
This item weighs 55g.
To see postage rates please click here.

Extra Information:
May also be known as: Part IV, Corner Bracket, Top Joint, Joining Bracket, 4-pronged Connector

Item No: GSP47
