Gazebo Spare Parts Ltd
Roof Corner Connector - 4-Way - 20mm- 20mm- 26mm diameters
95
Regular price
£3.99
Regular price
Sale price
£3.99
Unit price
per
Tax included.
Couldn't load pickup availability
Item No: GSP161
Item Description:
The Roof Corner Connector is the bracket located at either of the four top corners of the frame on many self-assembly gazebos. It is used to join together three roof poles and the leg pole.
Material: Plastic
Colour: White
The Roof Corner Connector is the bracket located at either of the four top corners of the frame on many self-assembly gazebos. It is used to join together three roof poles and the leg pole.
Material: Plastic
Colour: White
Dimensions of Roof Corner Connector:

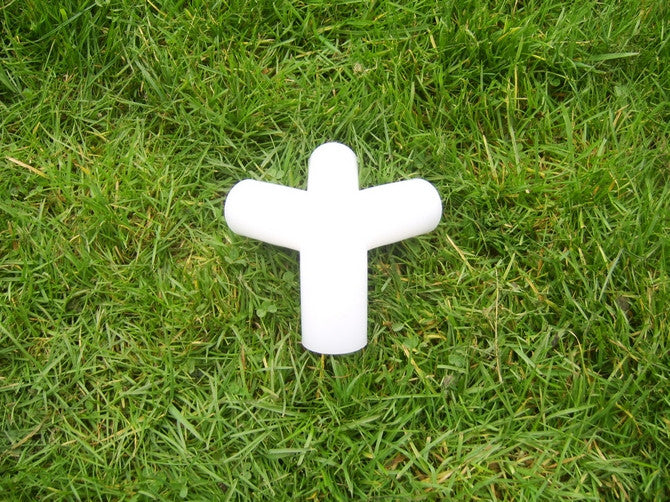

Slotted arms: Yes (see picture one)
Height: 80mm (measured vertically in upright position)

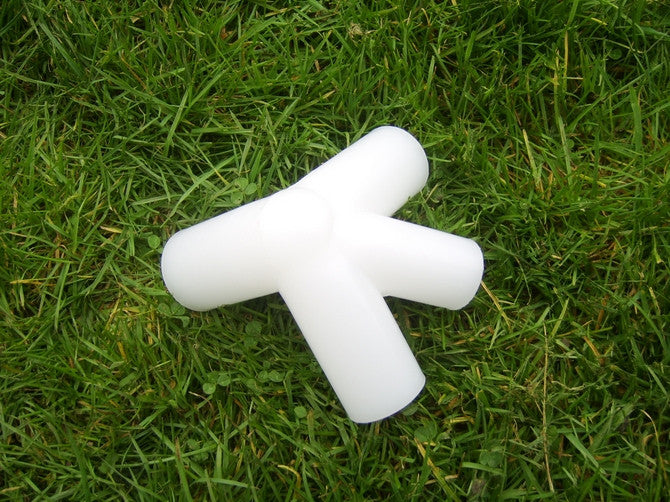

Width: 105mm (measured left to right in pictures 1 and 2)
Depth: 80mm (measured horizontally in upright position)
Centre socket inner diameter: 20mm
Side socket inner diameter: 20mm
Bottom socket inner diameter: 26mm
Side socket angle: 90 degrees right-angle (to fit a square or rectangular gazebo)
Bottom socket angle: 90 degrees right-angle (to fit a straight-leg gazebo)
Slotted arms: Yes (see picture one)
Height: 80mm (measured vertically in upright position)
Width: 105mm (measured left to right in pictures 1 and 2)
Depth: 80mm (measured horizontally in upright position)
Centre socket inner diameter: 20mm
Side socket inner diameter: 20mm
Bottom socket inner diameter: 26mm
Side socket angle: 90 degrees right-angle (to fit a square or rectangular gazebo)
Bottom socket angle: 90 degrees right-angle (to fit a straight-leg gazebo)
Compatibility:
B&Q 3m x 3m Self-assembly Gazebo
2010 - 2012: Catalogue no. 0000005291656
The Range 3m x 3m Self-assembly Gazebo
2014: Catalogue no. 528474
May be compatible with other makes, models and sizes
B&Q 3m x 3m Self-assembly Gazebo
2010 - 2012: Catalogue no. 0000005291656
The Range 3m x 3m Self-assembly Gazebo
2014: Catalogue no. 528474
May be compatible with other makes, models and sizes
Extra Information:
May also be known as: Corner Bracket, Top Joint, Joining Bracket, 4-pronged Connector
May also be known as: Corner Bracket, Top Joint, Joining Bracket, 4-pronged Connector
Item No: GSP161
Customer Reviews
4.9 Based on 95 Reviews
Customer Photos
Filter Reviews:
CL
29/08/2023
Chris L.
United Kingdom
A
07/08/2023
Anonymous
United KingdomRoof corner connectors
Very easy website to use. Our gazebo corner connections broke so rather than just throwing our gazebo away we bought new corners & it’s now as good as new.
A
06/09/2022
Anonymous
United KingdomBeaten into a corner
Just what I needed to replace the original corner connector, which was lost. Sturdy and robust.
DC
17/08/2022
David C.
United KingdomFast Service
Can’t fault the product or the speedy service in getting it to me.
DV
25/05/2022
David V.
United KingdomGazebo parts
The experience using gazebo Spare parts was a very straightforward process from ordering to receiving. Very quick turnaround and the parts fitted perfectly. Thank you.
