Item Description:
The Roof Corner Connector is the bracket located at either of the four top corners of the frame on many self-assembly gazebos. It is used to join together three roof poles and the leg pole.
Material: Plastic
Colour: White

Dimensions of Roof Corner Connector:
Slotted arms: No
Height: 110mm (measured vertically in upright position)

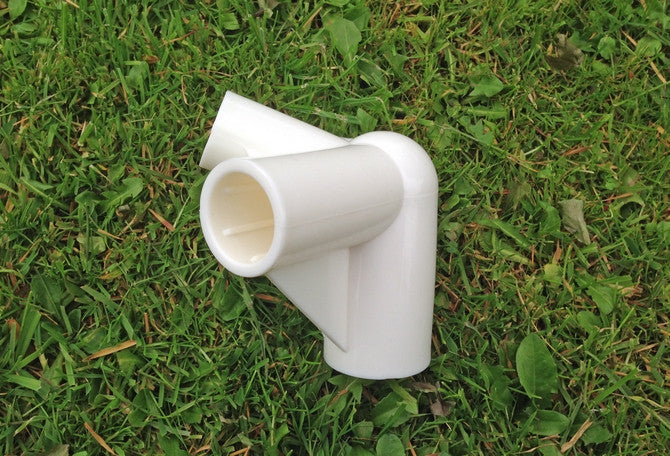

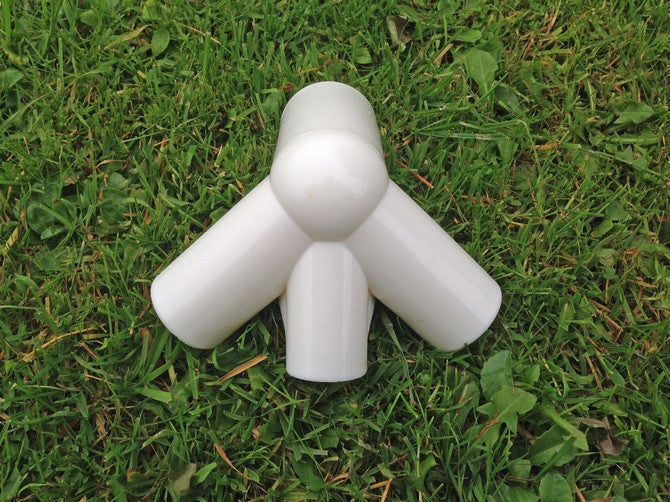

Width: 140mm (measured left to right in pictures 2 and 3)
Depth: 100mm (measured horizontally in upright position)
Centre socket inner diameter: 24mm
Side socket inner diameter: 26mm
Bottom socket inner diameter: 33mm
Side socket angle: 90 degrees right-angle (to fit a square or rectangular gazebo)
Bottom socket angle: 90 degrees right-angle (to fit a straight-leg gazebo)

Compatibility:
Argos 3m x 6m Self-assembly Gazebo
2012: Catalogue no. 651/0745*
2011: Catalogue no. 650/8850
May be compatible with other makes, models and sizes

Weight:
This item weighs 130g.
To see postage rates please click here.

Extra Information:
*Please note: The Argos gazebo with catalogue number 651/0745 was changed at the end of 2012, therefore whilst having the same catalogue number, pre-2013 models are not the same as models from 2013 onwards. Please check year and compatibility above. If unsure please check dimensions.
May also be known as: Corner Bracket, Top Joint, Joining Bracket, 4-pronged Connector

Item No: GSP143
