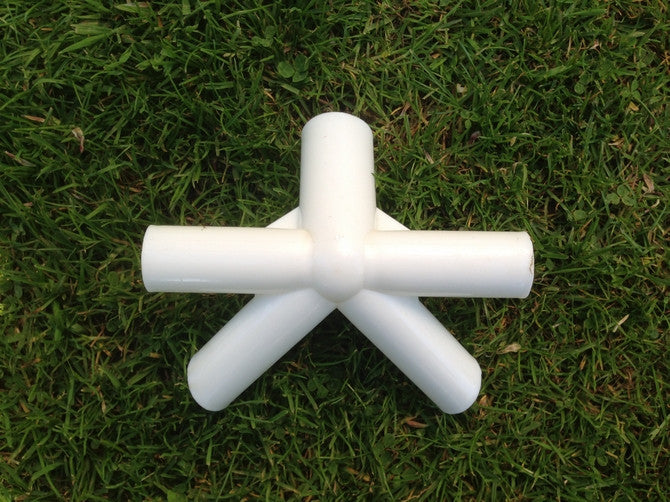

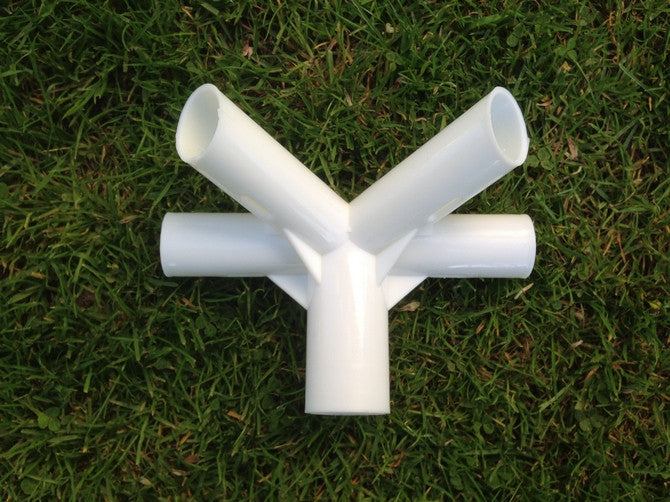

Roof Middle Connector - 5-Way - 25mm- 33mm diameters
Regular price
£5.99
Regular price
Sale price
£5.99
Unit price
per
Item Description:
The Roof Middle Connector is the bracket located at the top of either of the two middle legs on a 3m x 6m self-assembly gazebos. It is used to join together four roof poles and the leg pole.
Material: Plastic
Colour: White
The Roof Middle Connector is the bracket located at the top of either of the two middle legs on a 3m x 6m self-assembly gazebos. It is used to join together four roof poles and the leg pole.
Material: Plastic
Colour: White
Dimensions of Roof Middle Connector:
Slotted arms: Yes
Height: 130mm (measured vertically in upright position)

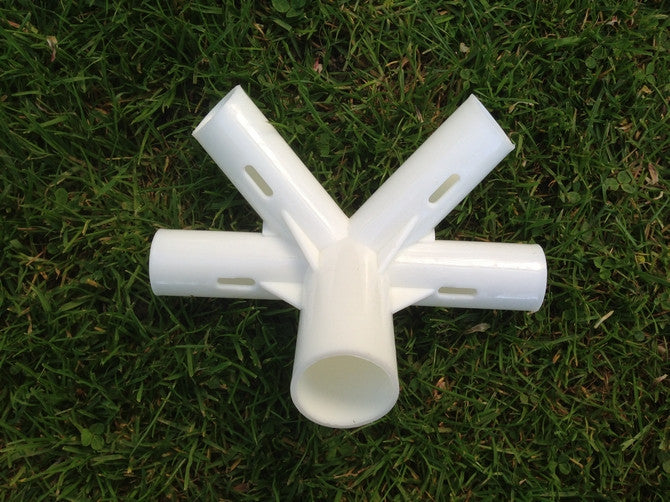

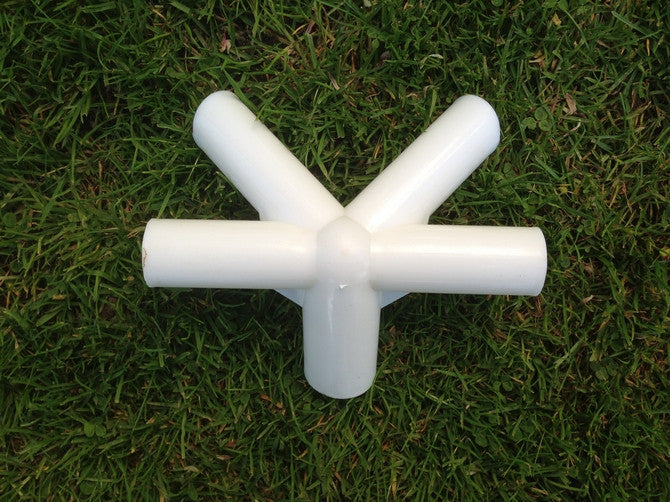

Width: 170mm (measured left to right in pictures 2 and 3)
Depth: 100mm (measured horizontally in upright position)
Centre socket inner diameter: 25mm
Side socket inner diameter: 25mm
Bottom socket inner diameter: 33mm
Side socket angle: 180 degrees angle (to fit the middle leg of a rectangular gazebo)
Bottom socket angle: 90 degrees right-angle (to fit a straight-leg gazebo)
Slotted arms: Yes
Height: 130mm (measured vertically in upright position)
Width: 170mm (measured left to right in pictures 2 and 3)
Depth: 100mm (measured horizontally in upright position)
Centre socket inner diameter: 25mm
Side socket inner diameter: 25mm
Bottom socket inner diameter: 33mm
Side socket angle: 180 degrees angle (to fit the middle leg of a rectangular gazebo)
Bottom socket angle: 90 degrees right-angle (to fit a straight-leg gazebo)
Compatibility:
Argos 3m x 6m Self-assembly Gazebo
2013 - 2014: Catalogue no. 651/0745*
B&Q 3m x 9m Self-assembly Skye Gazebo
2012 - 2013: Catalogue no. 12097775
May be compatible with other makes, models and sizes
Argos 3m x 6m Self-assembly Gazebo
2013 - 2014: Catalogue no. 651/0745*
B&Q 3m x 9m Self-assembly Skye Gazebo
2012 - 2013: Catalogue no. 12097775
May be compatible with other makes, models and sizes
Extra Information:
*Please note: The Argos gazebo with catalogue number 651/0745 was changed at the end of 2012, therefore whilst having the same catalogue number, pre-2013 models are not the same as models from 2013 onwards. Please check year and compatibility above. If unsure please check dimensions.
May also be known as: Corner Bracket, Top Joint, Joining Bracket, 5-pronged Connector
*Please note: The Argos gazebo with catalogue number 651/0745 was changed at the end of 2012, therefore whilst having the same catalogue number, pre-2013 models are not the same as models from 2013 onwards. Please check year and compatibility above. If unsure please check dimensions.
May also be known as: Corner Bracket, Top Joint, Joining Bracket, 5-pronged Connector
